Think in control layers, not products
A building enclosure separates the indoor environment from outdoors and from unconditioned spaces. Good performance requires four connected jobs: stopping bulk water, controlling air movement, slowing heat flow, and managing vapor diffusion. Different materials may perform more than one job, but every transition still needs a deliberate detail.
Building America guidance emphasizes that insulation should align with and remain in contact with a continuous air barrier. Gaps, compressed insulation, bypasses, and disconnected transitions reduce performance even when the center of each cavity looks full.
The four control functions
1. Bulk-water control
Roofs, cladding, flashings, drainage planes, foundation waterproofing, and site drainage keep rain and groundwater out. Insulation should never be asked to solve an active roof leak, failed flashing, or wet foundation.
2. Air control
Air leakage can move heat and moisture through cracks far faster than vapor diffusion alone. The air barrier must be durable and continuous across seams, changes in plane, penetrations, attic hatches, rim joists, and connections to windows and doors.
3. Thermal control
The insulation layer slows heat transfer. Its real performance depends on installed thickness, continuity, framing bridges, compression, gaps, and contact with the air barrier. Nominal cavity R-value is only one part of the assembly.
4. Vapor control
Vapor retarders slow diffusion. Their appropriate location and permeance depend on climate, materials, indoor humidity, and drying direction. More vapor resistance is not automatically better; trapping moisture between low-permeance layers can create risk.
Where continuity usually breaks
- Roof-to-wall and wall-to-foundation transitions.
- Rim and band joists between floors.
- Attic access panels, dropped soffits, chases, and top plates.
- Window and door rough openings.
- Plumbing, electrical, duct, vent, and flue penetrations.
- Porches, garages, cantilevers, balconies, and additions.
- Changes between framed walls, masonry, concrete, and metal assemblies.

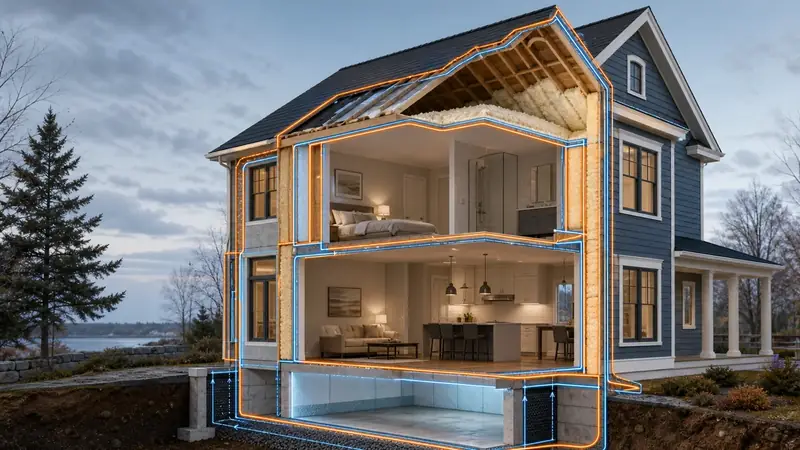

A useful design exercise is to trace each control layer around a building section without lifting the pencil. Wherever the line stops, changes material, or turns a corner, the project needs a connection detail.
Where spray foam fits
Spray polyurethane foam can insulate and control air in one application when installed to a tested thickness on a suitable, prepared substrate. Closed-cell products can also add vapor resistance. That combination is valuable at irregular framing, roof decks, rim areas, metal panels, and other locations where continuity is difficult.
Foam does not remove the need to define the enclosure. Spraying the roof deck changes the attic from a vented configuration toward an unvented enclosure; spraying crawl-space walls changes the boundary from the floor above toward the perimeter. Mechanical systems, combustion appliances, ventilation, drainage, fire protection, and code requirements must be coordinated with that decision.
Retrofit assessment: what should be checked first
- Map conditioned and unconditioned space. Decide what belongs inside the envelope.
- Inspect water history. Look for roof leaks, foundation water, staining, rot, corrosion, and drainage issues.
- Identify the current air barrier. Blower-door or diagnostic testing may reveal hidden bypasses.
- Review mechanical and combustion equipment. Air sealing can change pressure and ventilation conditions.
- Choose the drying strategy. Understand which layers are vapor-open or vapor-closed.
- Detail the transitions. Specify how foam or other materials connect at edges, penetrations, and material changes.
- Plan protection and sequencing. Address occupancy, ventilation, substrate preparation, fire protection, and later trades.
Common symptoms and what they can mean
| Symptom | Possible enclosure issue | What to investigate |
|---|---|---|
| Cold floors | Air leakage or disconnected insulation at floor/rim | Crawl space, rim joist, penetrations, moisture |
| Ice dams | Heat reaching the roof deck | Ceiling leaks, insulation continuity, attic strategy |
| Condensation on metal | Warm humid air contacting a cold surface | Air barrier, dew point, ventilation, thermal bridges |
| Drafty rooms | Air-barrier bypasses | Top/bottom plates, windows, chases, attic floor |
| Musty crawl space | Bulk water, ground vapor, air leakage | Drainage, vapor barrier, enclosure approach |
What to expect from an insulation scope
A clear scope identifies the boundary, product, target thickness, preparation, removals, substrate requirements, transitions, penetrations, ventilation, protection, access, exclusions, and responsibilities of other trades. For project-specific help, start with Score’s spray foam insulation services.
